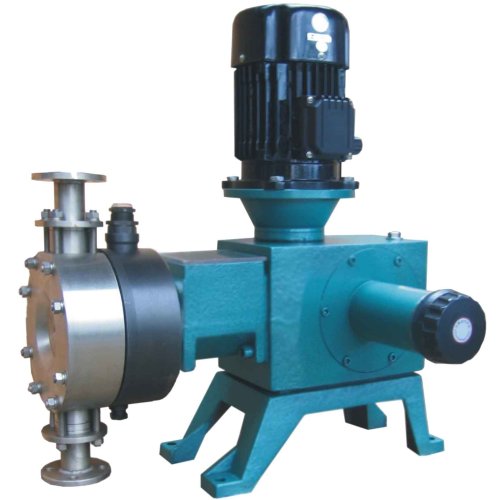

Hydraulic Diaphragm multiple head metering Pump

Hydraulic Metering Pump The whole pump consists of three parts, which are the motor, drive end and the hydraulic part. The output capacity is determined by the speed of the stroke on the drive end, diameter of the pump head, and the stroke length. The stoke length can be changed by adjusting the handle wheel through the stroke adjustment. 2JYMZ Series This s a special hydraulic metering pump which is with double pump heads in a driven parts, the advantage of this model is: 2 different chemical soluitions can be running at the same time in a system, or only one chemical solution is dosed but the capacity flow will be double, so compare with the 2 pumps in a system or a bigger pump for large capacity flow, our 2JYMZ pump can save a lot of installation room!    Main Specification ** The capacity up to 800 LPH ** The maximum pressure up to 500 bar ** Measuring accuracy reaches to -/+1% ** Temperatures of liquid shall be…
